Back Bar Shelving: Depth, Clearance, and Row Layouts

The Best Back Bar Shelving — and Why Most Listings Won't Tell You What You Need

You order a three-tier bottle display, mount it behind your bar, and discover that a standard Patrón bottle sits wider than the shelf. Or the second tier blocks the label on everything behind row one. Half the back bar shelving sold online lists a width and a height, skips the per-tier depth entirely, and leaves you guessing whether your 1.75 L handles will even stand upright without tipping backward.

We compare what listings and spec sheets actually say, not what the marketing does. Links here may earn us a commission, which never decides what tops a list.

This piece exists because I got tired of reading "stylish three-tier design" on ten product pages and finding the actual shelf depth on none of them. What follows is a comparison of ten back bar displays, ranked on the three dimensions that matter before you ever think about lighting color or finish: shelf depth per tier, vertical clearance between tiers, and load capacity. Every figure comes from the manufacturer's own listing, not from hands-on testing.

The Customized Designs 42-inch LED display wins on depth. Its 13.5-inch tiers seat bottles two rows deep on each step, which no other product here matches. The construction is cabinet-grade MDF with countertop laminate, the LED system is UL-listed with a lifetime warranty, and the whole unit is built in North Carolina. It costs accordingly.

Who should look past the winner

The BarConic LED 36-inch shelf is the runner-up, and for many home bars the better pick. It uses 6 mm acrylic shelving (a millimeter thicker than most competitors), HPL laminate on the frame, and an RF remote that transmits through walls. It ships at 36 inches wide but is also available at 18, 24, 30, and 48. If you need LED lighting but not the Customized Designs' double-row depth, this is where I'd start.

Soil & Oak notes that most liquor bottles fit on shelves 10 to 12 inches deep, and that reinforced steel or solid hardwood shelves can handle 50 to 100 pounds per shelf depending on installation. Those two numbers set the floor for what "adequate" looks like. Several products in this roundup fall well below both thresholds.

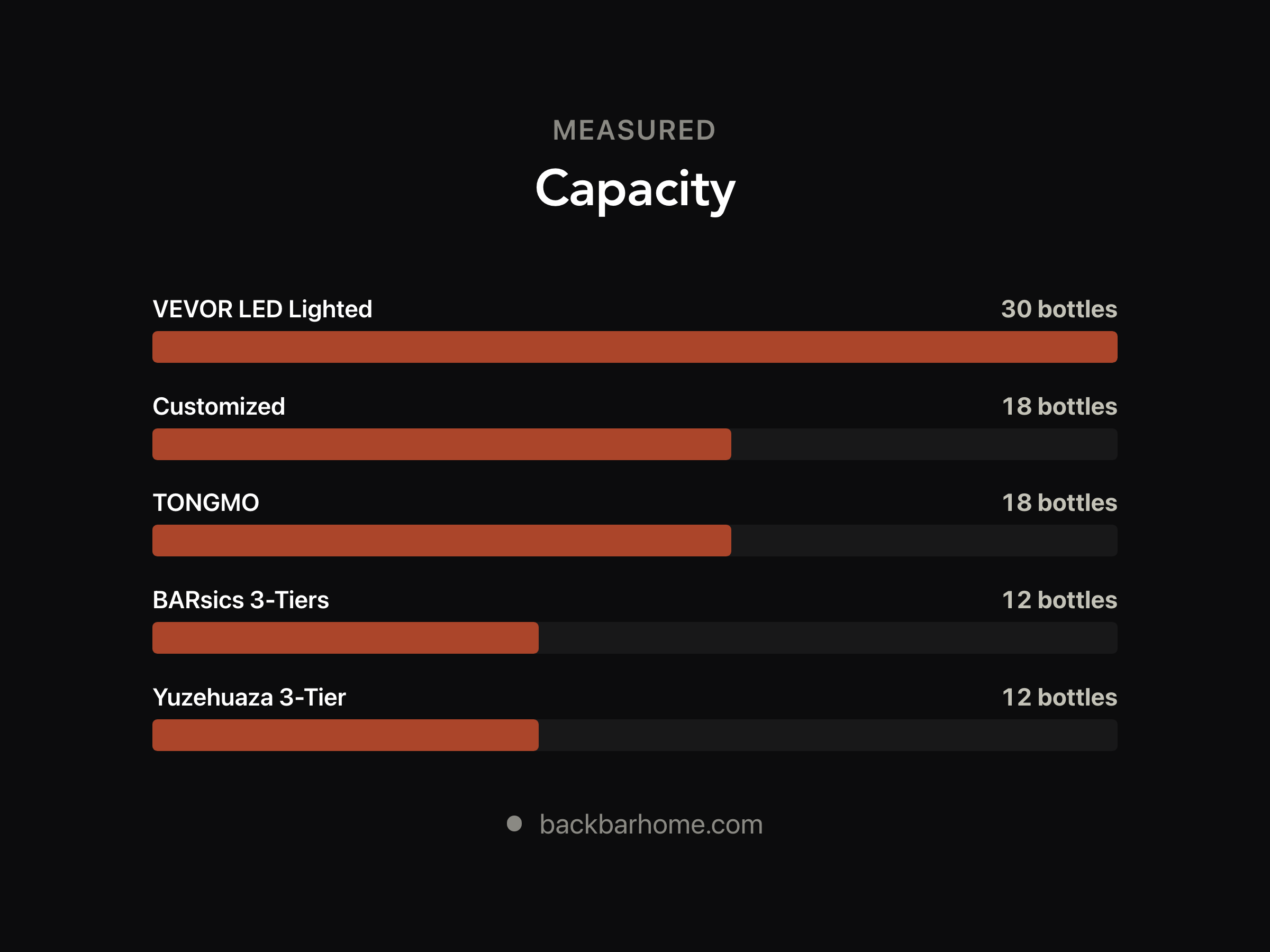

Product	Dimensions	Size	Capacity	Material	Choose if you need
BARsics 3-Tiers	16 x 6.5 x 12.5 in.	—	12 bottles	Clear acrylic	Best see-through riser
Customized	42 x 13.5 x 12.25 in.	42"	18 bottles	Cabinet-grade MDF with countertop-grade laminate	Best commercial-grade LED
Red Barn	18 in. wide (also available 12–42 in.) x 3.5 in. deep per tier (top tier 4.25 in.)	—	Varies by width (e.g., ~6 bottles at 18 in.)	Solid wood with premium stain and satin poly finish	Best handmade wood
PIKYsailed 39	39 in. wide	39 in	15+ bottles plus stemware	Thickened iron with baked enamel finish	Best heavy-duty wall rack
VEVOR LED Lighted	40 in. wide	—	30 bottles	5 mm frosted acrylic	Best budget LED
BARsics 503	15 x 12 x 6 in.	15 inches x 12 inches x 6 inches	9 bottles	Walnut wood	Best natural wood riser
Yuzehuaza 3-Tier	15.9 x 12.6 x 9.45 in.	1 pack 3 tier with handle	12 bottles	MDF board and iron grid	Best anti-tip design
TONGMO	24 x 11.8 x 5.9 in.	Large	18 bottles	Solid wood	Best high-capacity countertop
BarConic (Bar Products)	36 in. wide (also 18, 24, 30, 48 in.)	—	~30 bottles at 36 in.	MDF with HPL laminate and 6 mm milky-white acrylic shelves	Best durability
JUESHA	15 x 4.4 in. (L x W per tier)	—	~6 bottles	5 mm clear acrylic	Best for tight spaces

Measurements come from the manufacturers. The “Choose if you need” call is ours.

Start here

Red Barn — best for a handmade, solid-wood display for buyers who want real craftsmanship over mass-produced shelving.

For everyone else:

• For a transparent countertop riser that disappears behind the bottles it holds, letting any existing lighting scheme show through without competing — BARsics 3-Tiers.
• For a professional-grade, USA-made LED back bar for a commercial establishment or serious home bar that demands UL-listed lighting and durable laminate construction — Customized.
• For a heavy-duty wall-mounted metal rack that can hold both bottles and hanging stemware on a single installation — PIKYsailed 39.

Worth knowing: no integrated lighting—requires separate bar lighting

How Deep Do Back Bar Shelves Actually Need to Be?

Depth decides everything. Not aesthetics, not finish.

Soil & Oak's shelving guide puts the comfortable range for most liquor bottles at 10 to 12 inches deep. That gives you one front-facing row where every label is readable from behind the bar. The Customized Designs 42-inch unit, at 13.5 inches deep, clears that threshold with room to spare: its listing specifies that bottles can sit two rows deep on each tier. The TONGMO 24-inch solid wood riser comes in at 11.8 inches, landing right inside the single-row sweet spot.

Below those two, the numbers drop fast. The BARsics acrylic riser offers 6.5 inches of depth, and the JUESHA modular acrylic gives you just 4.4 inches per tier. Both hold bottles upright, but neither accommodates anything with a wide base.

Wine glasses change the equation

Soil & Oak's sizing guide notes that most wine glass bases measure roughly 3.5 inches in diameter, with bowls reaching about 4.25 inches. Two rows of stemware side by side need 9 to 10 inches of shelf depth.

That means the Customized Designs and TONGMO risers can double as glassware displays if you skip the bottles on one tier, while the Red Barn Designs handmade shelf (3.5 inches per tier) and the Yuzehuaza fenced riser (3.94 inches per tier) cannot fit even a single row of standard wine glasses without overhang.

A third row of anything, at any depth, is where the math stops working in your favor. Push bottles three deep on even a 13.5-inch shelf and the rear labels vanish completely. In a commercial setting, a bartender reaching past two rows to grab a bottle they can't identify by sight is a bartender slowing down service. Two visible rows is the practical ceiling. Go wider, not deeper.

What Vertical Clearance Do You Need Between Shelves?

Height matters more than depth.

Most back bar displays ship with uniform tier spacing, which means you either size every gap for your tallest bottle and waste vertical real estate, or you guess wrong and a Don Julio 1942 won't stand upright on the second tier. Soil & Oak's shelving guide lists the actual heights for five common bottle categories, and adding 1.5 inches of clearance above each (enough to lift a bottle off the shelf without tilting it) gives you the minimum spacing per tier.

Bottle height to minimum clearance

That 19-inch figure for the Don Julio 1942 is the one that breaks most three-tier shelving. The VEVOR 40-inch LED display, the BARsics acrylic riser, and the Yuzehuaza fenced riser all stand under 13 inches total height, which means their per-tier clearance tops out around 4 to 5 inches. That rules out upright bottles. Fine for short bottles laid on their sides or for barware, but no standard 750 ml spirit bottle fits upright on anything but the top (open) tier.

The fix is to stop treating every tier the same. Put your speed-rail 750 ml bottles on the tightest tier at eye level, where 14.5 inches of clearance is plenty and fast identification matters most. Reserve the top tier, which has no shelf above it, for handles and show bottles like Clase Azul.

Soil & Oak recommends this same principle for glassware: highball glasses need only 8 inches of clearance, while red wine glasses need 11 to 12 inches. Mix your tiers accordingly.

Pre-built risers don't let you adjust spacing, so the number to check before buying is total height divided by number of tiers. The Customized Designs 42-inch LED unit, at 12.25 inches tall across three tiers, dedicates its vertical space to width and depth instead of height, which means even standard 750 ml bottles on the lower tiers need careful measurement.

The TONGMO 24-inch riser stands just 5.9 inches tall. Only the open top tier on either unit reliably clears a full-size spirit bottle.

Weight Loads and the Bracket Problem Nobody Mentions

Soil & Oak's shelving guide notes that custom shelves built with solid hardwood or reinforced steel brackets can support 50 to 100 pounds per shelf, depending on installation. That range matters because most of the acrylic and MDF risers in this roundup ship with no bracket system at all: they're freestanding stacks where the material itself is the structure.

Which products handle real weight?

The PIKYsailed 39-inch wall-mounted rack is the outlier here. Its listing specifies a 220-pound per-tier capacity, which puts it in the reinforced-steel category Soil & Oak describes. That figure assumes proper installation into wall studs, not drywall anchors.

The Customized Designs 42-inch LED unit uses cabinet-grade MDF with rubber feet on a countertop, so the counter bears the load rather than brackets, but MDF is rigid enough for two rows of bottles per tier. The BarConic 36-inch LED shelf uses HPL laminate over MDF with 6 mm acrylic shelves (thicker than the 5 mm VEVOR uses), though at 38 pounds empty it's already asking a lot of whatever surface holds it.

Acrylic is the weak link. The VEVOR 40-inch LED display and the BARsics acrylic riser both rely on 5 mm acrylic tiers with no reinforcement. Acrylic is known to flex under sustained load, and 5 mm is a thin cross-section for spanning any real width. Manufacturers of floating-shelf hardware flag this same failure mode in their own documentation: a shelf that holds its rated weight on installation can develop visible bow over subsequent months as the material creeps. Five full 1 L bottles on a single unreinforced 5 mm acrylic tier sit squarely in that risk zone.

Which Shelf Suits Which Bar

Commercial bars that need LED lighting, two-row depth, and scratch-resistant surfaces should look at the Customized Designs 42-inch unit (13.5 inches deep, UL-listed LEDs) or the BarConic 36-inch LED shelf with its HPL laminate and 6 mm acrylic tiers. Both are made in the USA, both weigh enough that repositioning mid-shift is not casual. Both assume you have counter space to spare.

Home bars are a different calculation. The TONGMO 24-inch solid wood riser holds 18 bottles with no assembly, and the BARsics walnut riser fits counters as narrow as 15 inches. The Distilled Spirits Council recommends keeping liquor away from direct sunlight and heat sources, so a wall-mounted option like the PIKYsailed 39-inch rack, installed on an interior wall away from windows, doubles as display and preservation.

Tight on space? The JUESHA acrylic riser at 4.4 inches deep is the only option here that fits a counter under 5 inches.

Every recommendation above is built from published dimensions, listed materials, and manufacturer specs. I have not handled, loaded, or stress-tested any of these products. That Patrón bottle from the top of this piece? It sits about 3.5 inches across the base. Check the per-tier depth on whatever you're buying against that number before you click, because the listing probably won't warn you.
